Pallet Levellers

1,000.00

:: Ideal For Palletising/De-Palletising Small Boxes
:: Capacity 200 - 2,000 kg
:: Minimum Height 240 mm
:: Maximum Height 710 mm
:: No Floor Fixings Required
:: Moveable Via Fork Lift Truck
:: Spring Loaded Or Pneumatic Models
:: Fork Pockets Enable Easy Pick Up By Fork Lift Truck
:: Maintains Pallet Load At A Comfortable Working Height
:: Stainless Steel Models And ATEX Certification

View PDF

Out of stock

Product Description

Pallet Levellers

::
Pallet Levellers Are Ideal For Palletising / Depalletising Small Boxes

:: Capacity 200 - 2,000 kg
:: Minimum Height 240 mm
:: Maximum Height 710 mm
:: Stroke 470 mm
:: Turntable Diameter 1,110 mm
:: Width 1,110 mm
:: Length 1,150 mm
:: Weight 160 kg
:: Spring Loaded Or Pneumatic Option

::
No Floor Fixings Required

:: Moveable Via Fork Lift Truck
:: Heavy Duty Springs Calibrated To Bring Pallet To Convienient Loading & Unloading Height
:: Fork Pockets For Relocation By Fork Truck
:: Extended Base For Free Standing Stability
:: Rugged Tubular Steel Frame
:: Proven Linkage Design Maintains Level Under Uneven Loading
:: Dampner Provides Smooth, Gradual Raising And Lowering Action, Without Overshoot Or Spring Bounce

::
Maintains Pallet Load At A Comfortable Working Height

:: Simple, Robust And Cost Effective


Options

::
Filled In Platform

:: Modified Platform
:: Levelling Feet

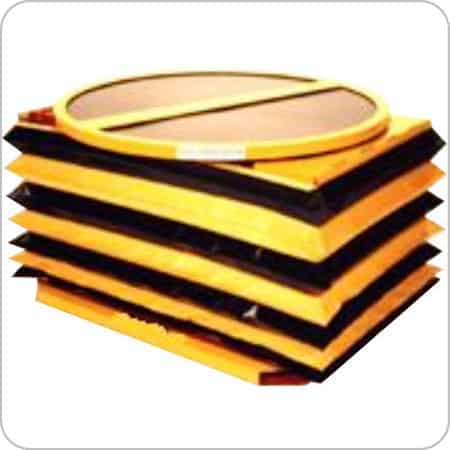

:: Protective Bellows
:: Damper Unit
:: Custom Models Available
:: Galvanised Models

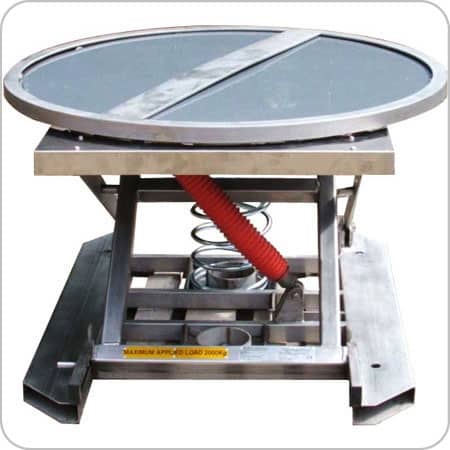

:: Stainless Steel Models
:: ATEX Certification

Additional information

Weight1 kg
