Floor Mounted Jib Cranes

    1,000.00

    :: Capacity 50 –  2,000 kg
    :: Spans Up To 8m

    :: Overbraced, Underbraced, & Articulated Styles

    :: Jib Clearance 2.5 - 6m

    ::
    Rotation Options, 180°, 270°, & 360°
    :: Painted Steel, Aluminium, & Stainless Steel Models
    :: ATEX, Low Headroom, & cGMP Models
    :: Powered Travel & Rotation/Slewing Options
    :: Light Weight & Heavy Duty Models

    View PDF

    Out of stock

    Product Description

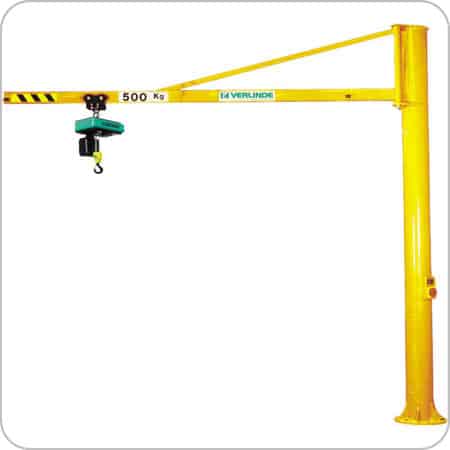

    Overbraced Floor Mounted Jib Crane

    ::
    Overbraced Jib Crane Attached To A Steel Column Fitted Onto A Base Reinforced With Stiffners

    :: Comparitively Independent From The Building, Fixed To The Floor Via Bolts Or Chemical Anchors

    :: Capacity 50 - 2,000 kg

    :: Span 1 - 7 m

    ::
    Rotation 270°
    :: Jib Clearance 2.5 - 6 m
    :: Powered Travel Options
    :: Light Crane Or Heavy Duty Beam Styles

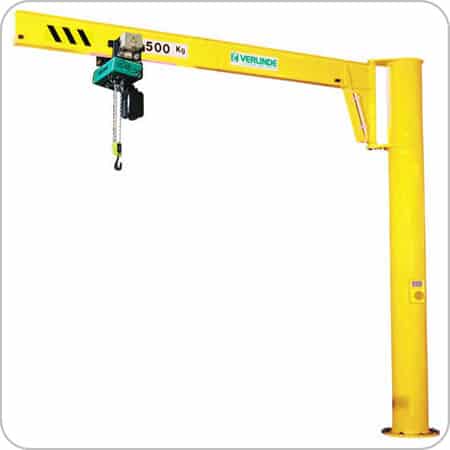

    Underbraced Column Mounted Jib Crane

    ::
    Underbraced Jib Crane Attached To A Steel Column Fitted Onto A Base Reinforced With Stiffners

    :: Completely Independent From The Building
    :: Concrete Foundation Is Required Before Fixing The Jib Crane By Means Of Anchor Bolts And Template
    :: Capacity 250 - 2,000 kg
    :: Span 2 - 6 m
    :: Jib Clearance 2.5 - 6 m
    :: Rotation 270 Degrees
    :: Powered Travel And Rotation Options

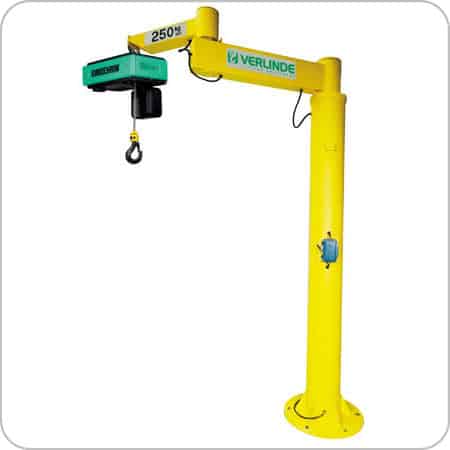

    Articulated Floor Mounted Jib Crane

    ::
    The Articulated Jib Crane Can Almost Span A Full Circle, With Practically No Dead Space

    :: Capacity 50 - 1,000 kg
    :: Span 3 - 5 m
    :: Jib Clearance 3 - 5 m

    Additional information

    Weight1 kg
