Beam Trolleys

    1,000.00

    :: Manual, Hand Chain Or Powered Travel Options
    :: Capacity 250 - 10,000 kgs
    :: Use With Any Type Of Lifting Equipment Fitted With A Hook
    :: Adjustable Side Plates
    :: Standard Range Suits I Beams 50 - 310mm Wide
    :: Electric Model - Travel Speed 5 - 20 m/min
    :: Stainless Steel And ATEX Options

    View PDF

    Product Description

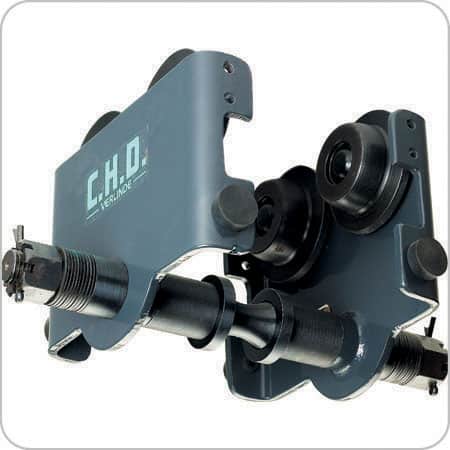

    Manual I Beam Trolley - CHD

    ::
    Capacity 250 - 10,000 kg

    :: Can Be Used With Any Type Of Lifting Equipment Fitted With A Hook
    :: Adjustable Side Plates To Suit Different I Beam Sizes / Widths
    :: Standard Range Suits I Beams 50 - 310 mm Wide
    :: Travel Is Achieved By Push / Pull Movement
    :: Manufactured In High Resistance Steel
    :: Rollers Are Shaped To Run On All Types Of Steel Monorails

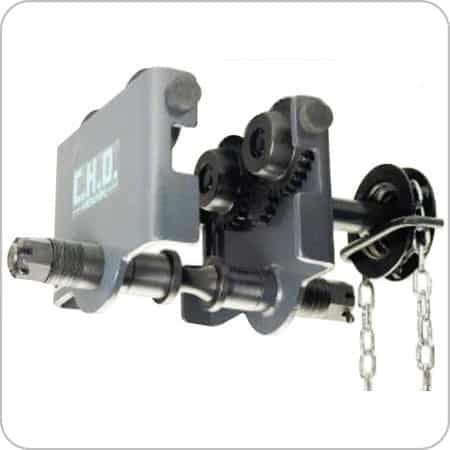

    Hand Chain Driven Model - CHDD

    ::
    Capacity 1,000 - 10,000 kg

    :: Standard Range Suits I Beams 65 - 310 mm
    :: Hand Chain 0.5 m Above Ground Level
    :: Drive Chain And Drive Wheels
    :: To Suit Radius Of Curviture From 0.65 m To 2.0 m
    :: CHRD Model Also Available For Capacities From 12,500 to 20,000 kg


    Electric Travel Model - CHV

    ::
    Variable Travel Speed 5 - 20 m/min

    :: 4 Rubber Stops
    :: IP55, Class F Motor Protection Standard
    :: Low Voltage Control

    3 Standard Models

    :: CHV 10: 250 - 1,000 kg
    :: CHV 20: 1,000 - 2,000 kg
    :: CHV 30: 2,000 - 3,200 kg


    Options

    ::

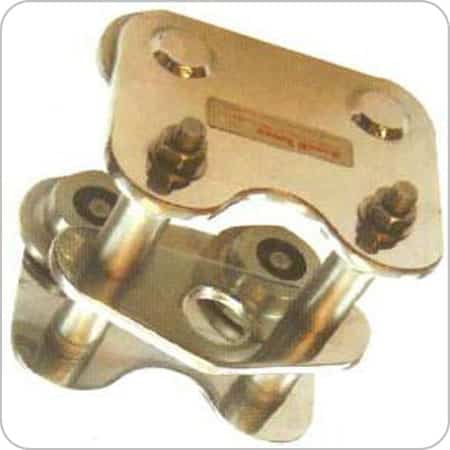

    Full Stainless Steel Construction

    :: ATEX Certified
    :: Spark Resistant
    :: Installation, Testing & Certification
    :: Hoists Built In Or Hook Suspended


    Additional information

    Weight1 kg
