Spring Balancers

    1,000.00

    :: Capacity 0.4 – 180 kg
    :: Light Or Heavy Duty Models
    :: Working Strokes From 1.3 to 3m
    :: Cast Aluminium Body
    :: Adjustable Capacity
    :: Auxillary Safety Cable
    :: Anti-friction Cable Guide
    :: Stainless Steel Cable
    :: Suspension By Safety Hook
    :: Standard And ATEX Certified Models

    View PDF

    Out of stock

    Product Description

    Tool Balancers

    ::

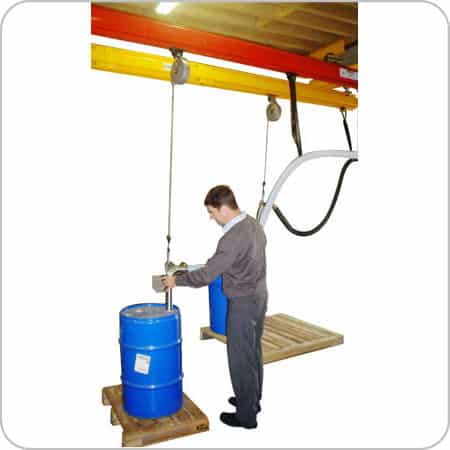

    Are The Ideal Solution For Many Applications Where There Is A Requirement To Hold Or
    Position A Tool Or Work-Piece Without Excessive Manual Effort

    :: Balancers Are Available In A Range Of Capacities From 0.4 kg To 180 kg With Working Strokes From 1.3 - 3 m.
    :: Applications Vary From Light Bench Work To Heavy Industrial Applications
    :: Standard And ATEX Certified Models

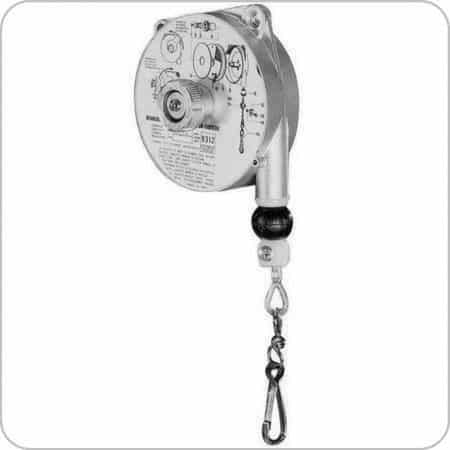

    Light Duty Tool Balancers

    An Economical And Light Weight Range Of Balancers With Capacities From 0.4 - 14 kg And
    Maximum Working Stroke 2,500 mm, Ideal For General Bench Wor
    k.

    Features

    ::
    Simple Rugged Construction
    :: Cast Aluminium Body
    :: Adjustable Capacity
    :: Self Lubricating Bushes
    :: Adjustable Stroke Limiting Device

    ::
    Rotary Hook

    :: Auxillary Safety Cable
    :: Stainless Steel Cable
    :: Anti-Friction Cable Guide

    Light Duty Models

    ::
    Series 31: 0.4 - 3.0 kg Capacity / 1,600 mm Working Stroke

    :: Series 32: 1.0 - 8.0 kg Capacity / 2,000 mm Working Stroke
    :: Series 33: 2.0 - 14.0 kg Capacity / 2,500 mm Working Stroke
    :: Series 34: 2.0 - 14.0 kg Capacity / 2,500 mm Working Stroke
    (Locking Device For Instant Locking And Release At Any Height)

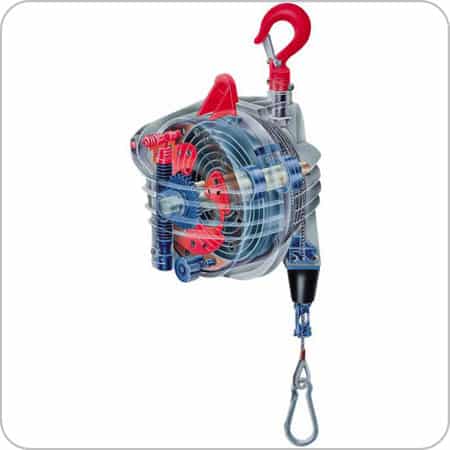

    Heavy Duty Tool Balancers

    ::
    A Range Of Tool Balancers With 'Anti Load Drop' Safety Device Suitable For Working
    Strokes Up To 3,000 mm


    Features

    ::
    Capacity 4 - 180 kg
    :: Safety Device Prevents The Load From Dropping In The Event Of Spring Failure
    :: Taper Drum Rotation On Ball Bearings
    :: Precision Guided Cable Winding Avoids Entanglement And Jamming
    :: Anti-Friction Cable Guide

    ::
    Ribbed, Sealed Mono Block Construction

    :: Inert Spring Drum Assembly For Easy Replacement
    :: Cast Aluminium Body
    :: Adjustable Capacity By Means Of A Worm Screw
    ::
    Auxillary Safety Cable

    :: Suspension By Safety Hook
    :: Stainless Steel Cable
    :: Latching Device To Hold Load In Position At Different Levels (Optional)

    Heavy Duty Models

    ::
    Series 35: 4 - 25 kg Capacity / 2,000 mm Working Stroke

    ::
    Series 36:
    :: Safety Device Prevents The Load From Dropping In The Event Of Spring Failure
    :: Taper Drum Rotation On Ball Bearings
    :: Precision Guided Cable Winding Avoids Entanglement And Jamming
    :: Anti-Friction Cable Guide

    ::
    Ribbed, Sealed Mono Block Construction

    :: Inert Spring Drum Assembly For Easy Replacement
    :: Cast Aluminium Body
    :: Adjustable Capacity By Means Of A Worm Screw
    ::
    Auxillary Safety Cable

    :: Suspension By Safety Hook
    :: Stainless Steel Cable
    :: Latching Device To Hold Load In Position At Dirrerent Levels (Optional)


    Additional information

    Weight1 kg
